Magnatech Orbital Welding

Machines For Automated Tube & Pipe Welding

The Original Orbital Welder

The company was founded in 1946 to manufacture aerospace components including circular seals for extreme temperature and pressure applications, supporting initial development of the gas turbine engine. In 1964, the company was purchased by the present owners, and moved to its location adjacent to Bradley International Airport (Hartford, Connecticut). Since then, Magnatech has developed some of the most innovative orbital welding equipment for Aerospace, Pharmaceutical, Automotive, Semi-Conductor, and Sanitary welding applications.

Pipemaster 515 Orbital Pipe Welding

Magnatech Weld Heads

M500 Micro

  • .125″-.50″ Tube Welding
  • Designed for Compact Spaces
  • Interchangeable Collets

800 Series

  • 805-860 Weld Heads
  • Tube-To-Tube/Fitting
  • USA Manufactured

QX800 Series

  • Quick Exchange Collets
  • Enhanced Head Cooling
  • 514 & 515 Compatible

Open Heads

  • Open Face Weld Head
  • Automated Weld Track
  • 1″ – 6″+ Weld Diameter
Magnatech Micro Weldhead M500 for small diameter tube

Learning The Basics: 514

2021 Sales Person of the Year Mark Eastin

Magnatech Power Supplies

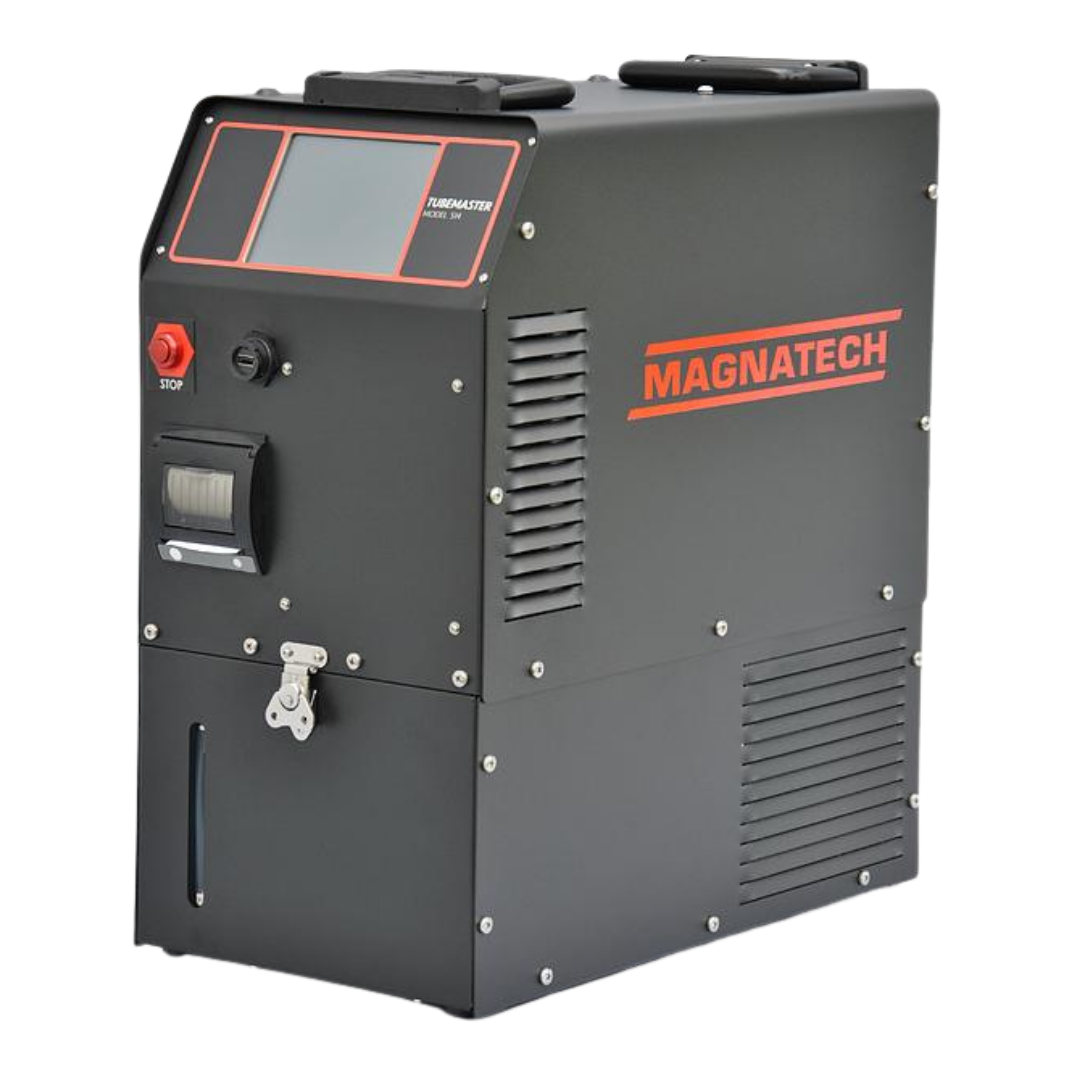

514 Tube Master

Magnatech’s most advance tube welding machine to date. Take advantage of true automated welding with the Magnatech 514 remote pendant. With unmatched repeatability, precision, and dependability, the 514 is the go to tool for welders across the North America. The rotation speed remains accurate regardless of head wear, and heads can be swapped out without requiring lengthy calibration.

Magnatech 514 Tube Fitter Orbital Welding System No Background

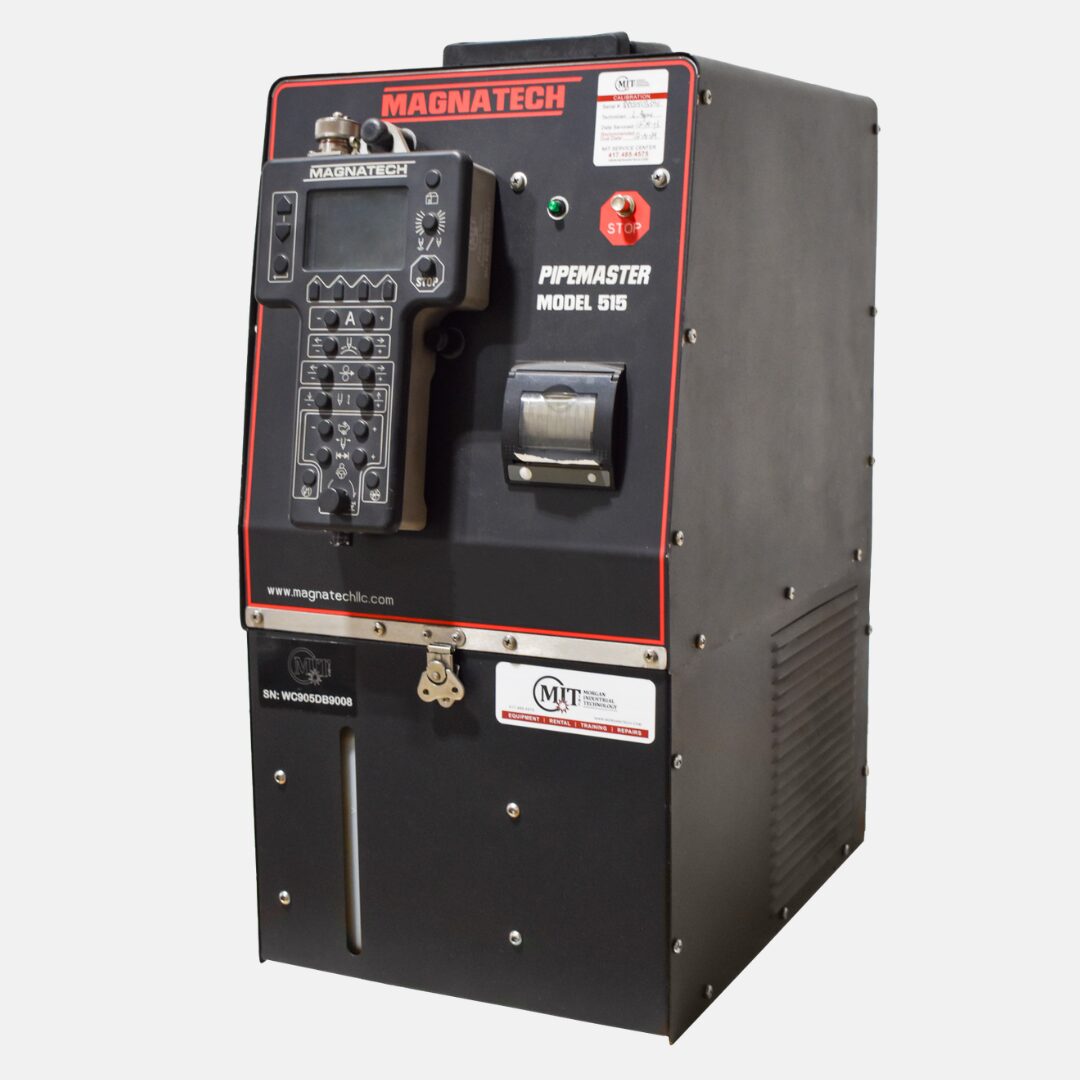

Magnatech Orbital Pipe Welding 515

515 Pipe Master

A new direction in power source design led to the development of the most recent Pipemaster power source generation. The new model is half as big and weighs half as much as its predecessors. Weld head calibration is no longer required on a regular basis thanks to the digital technology used. With this technology, the rotation speed remains constant despite head wear, and heads can be swapped out without requiring a lengthy recalibration process.

516 Multi-Pass

The Pipemaster 516 brings the benefits of digital technology to the orbital welding customer: unparalleled accuracy, repeatability, and reliability. Digital technology forever eliminates the need for periodic weld head calibration – motor speeds and response characteristics remain accurate and stable regardless of wear, and weld heads can be interchanged without time-consuming calibration.
