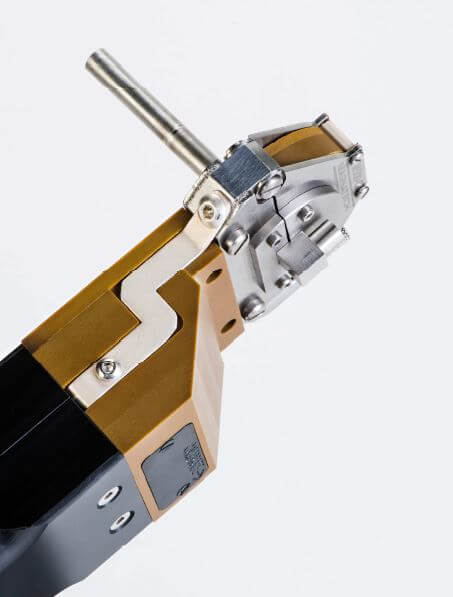

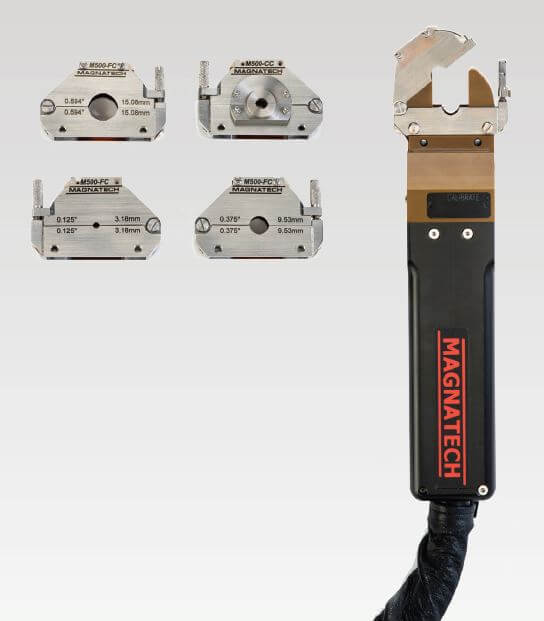

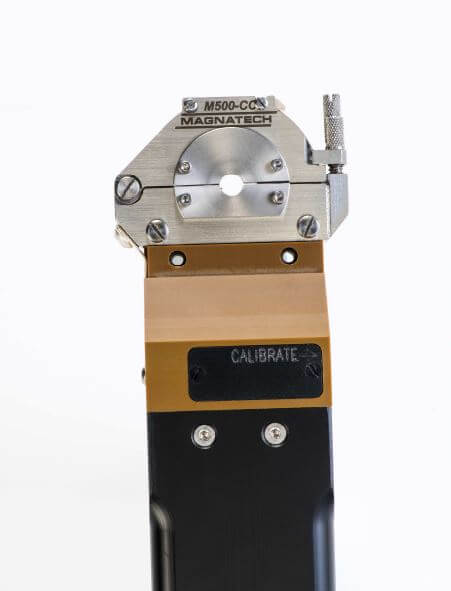

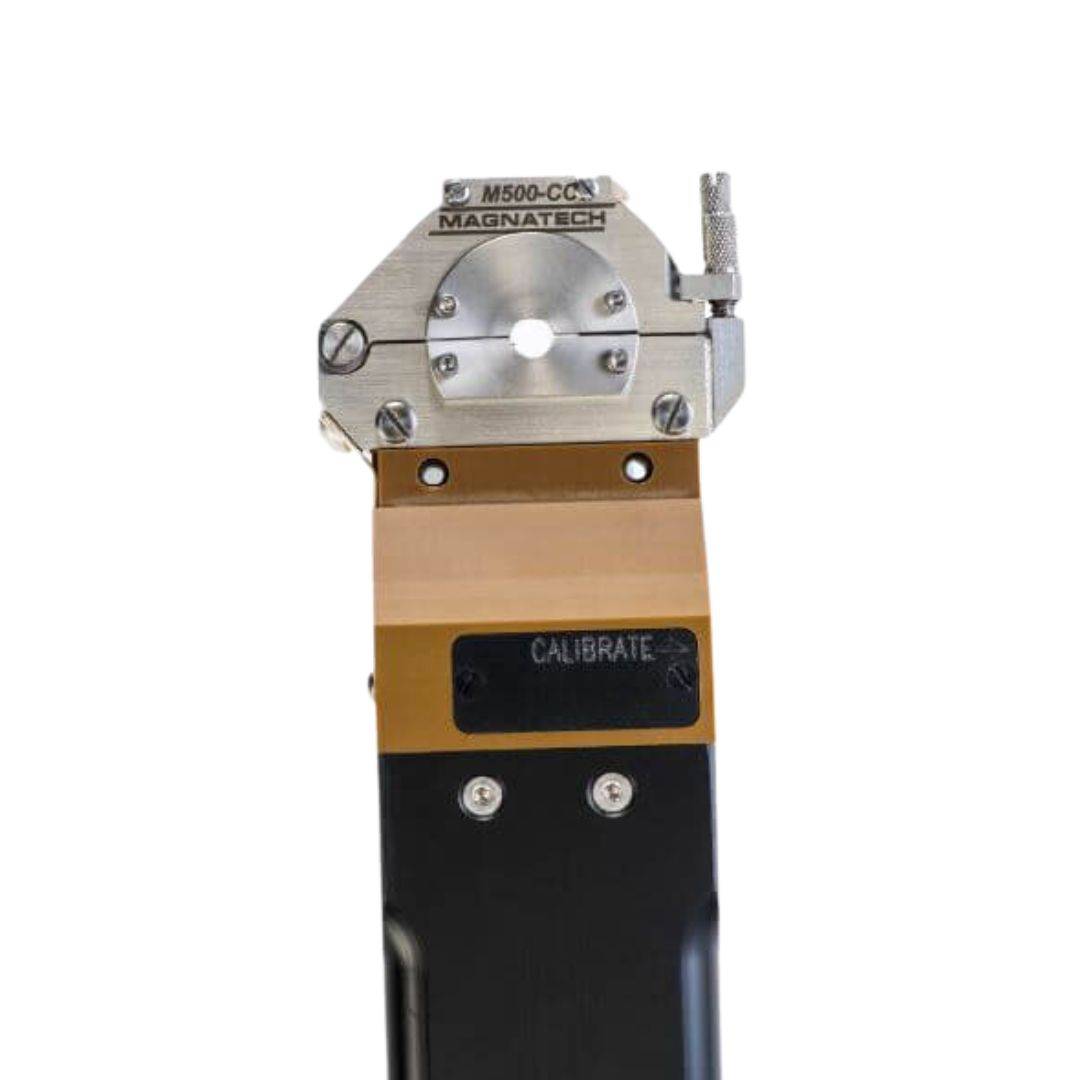

Magnatech M500 Micro Weld Head

Magnatech Micro Weld Head Precision Welding Sanitary Welding Tool

Magnatech M500 Micro Weld Head

  • Size Range: .125" to .5" OD Tube
  • Collet frames hinge on same side, allowing greater access to tight clearance
  • Housing rated for 525 degrees F, eliminating need for water cooling
  • Made in USA

The welding solution for critical components in aerospace and semi-conductor processing. Magnatech’s M500 Micro Weld Head – one of the smallest orbital weld heads available on the market. With its ultra-low profile and measuring in at only 10” in length, the M500 is engineered for precise fusion welding of small tubes and fittings and features the industry’s narrowest configuration flush cartridge and collet. Perfect for tight clearance micro-fit welding applications, the M500 is equipped with a housing body crafted from exceptional duty cycle material that eliminates the need for water cooling. Its collet frames hinge on the same side, making this an ideal choice for welders with limited space.

Features of the Magnatech M500 Micro Weld Head include three configurations to fit various power supplies, a quick-release thumb screw that eliminates the need for tools, and a standard 25ft cable length. The M500 is designed to weld tube ranging from .125” (3,175 mm) thru .5” (12,7 mm) and has a housing rated for 525° F (273° C).

Magnatech M500 Micro Weld Held Features

  • Three configurations to fit various power supplies
  • Quick-release thumb screw eliminated the need for tools
  • Standard 25 ft cable length

Part # M-500ROB000

Magnatech M-500 TCA 1/4″ OD100125M5-0250
Magnatech M-500 TCA 3/8″ OD100125M5-0375
Magnatech M-500 TCA 1/2″ OD100125M5-0500
Magnatech M-500 TCI set 1/4″ OD10012501-0250
Magnatech M-500 TCI set 3/8″ OD10012501-0375
Magnatech M-500 TCI set 1/2″ OD10012501-0500
