Magnatech 800 Series Weld Heads

Magnatech 805 Weld Head
Company:

Magnatech 800 Series Weld Heads

  • Size Range: .125" to 6.625" OD
  • Orbital GTAW welding of tube-to-tube or tube-to-fitting
  • Collets available for any tube or fitting size within range
  • Made in USA

Product Description:

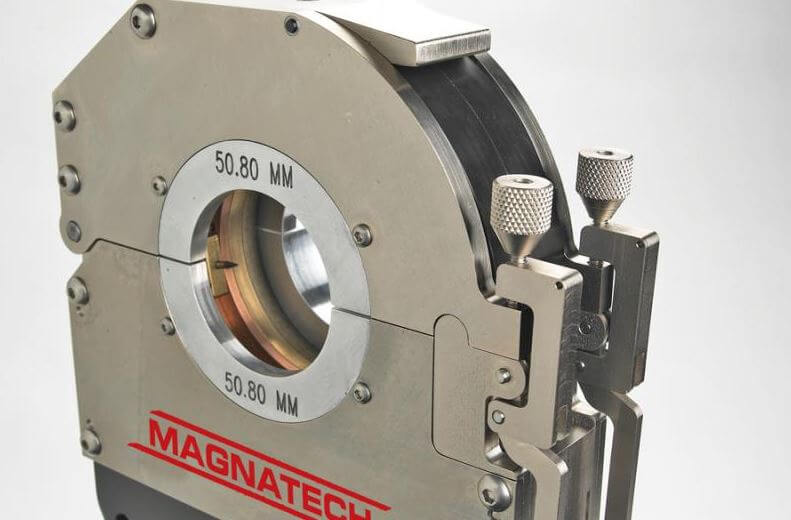

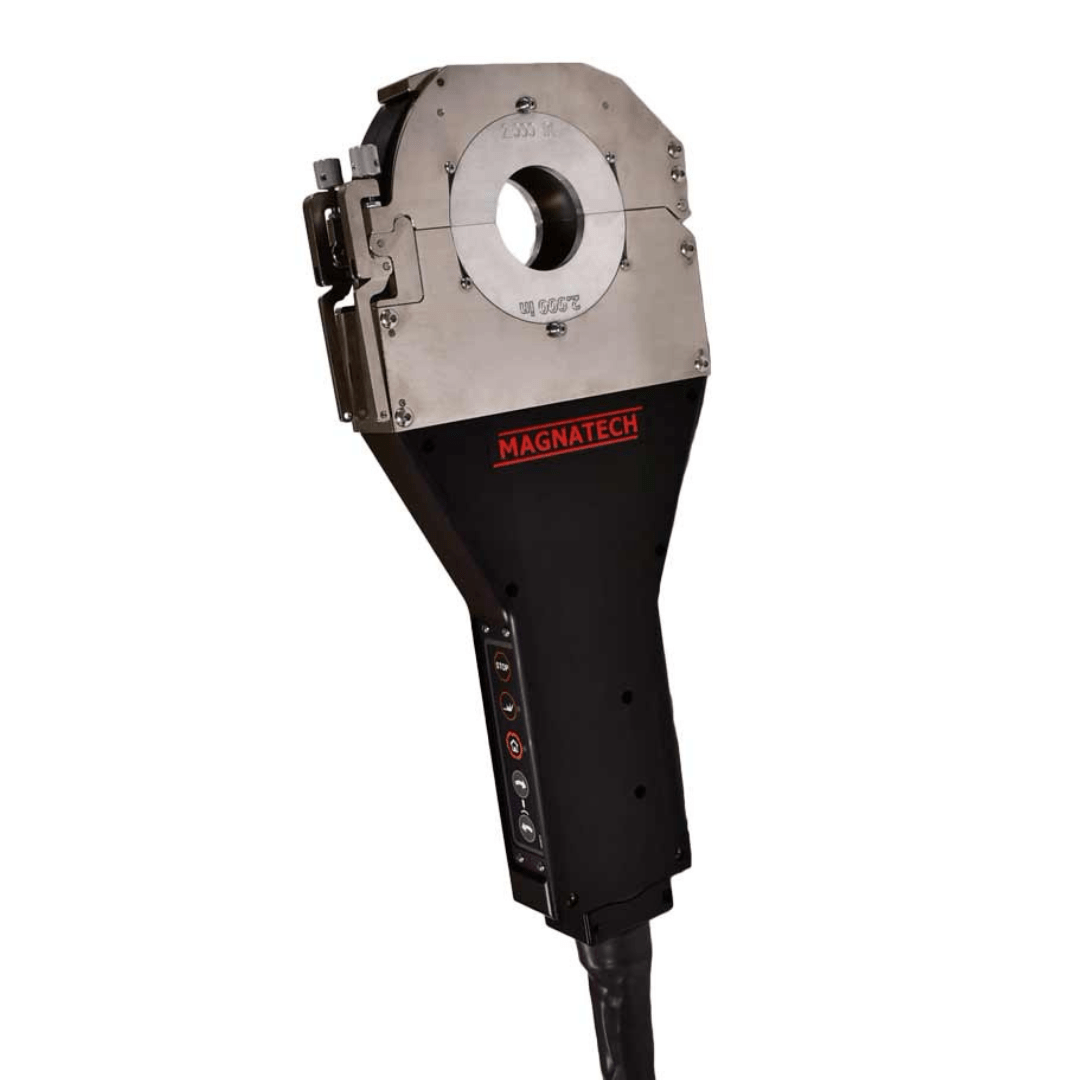

The Magnatech 800 Series Weld Heads make tube-to-tube and tube-to-fitting welds with precision, efficiency, and repeatability.

With five models covering a size range of tubes from 3mm to 152.4mm (0.125″ – 6.0″) OD, the double-clamping design simplifies work piece fit-up, and eliminates tack welding in many cases. Collets are available for any tube and fitting size, with a rigid design that never needs replacement. The digital technology used eliminates the need for periodic weld head calibration. With this technology the rotation speed remains consistent, regardless of head wear, and heads can be interchanged without time-consuming recalibration.

Model | Tube Size Range:

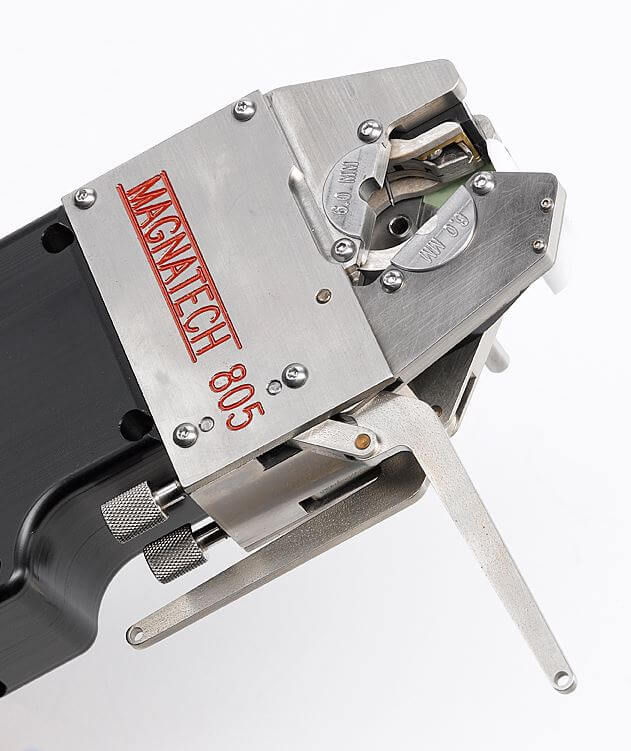

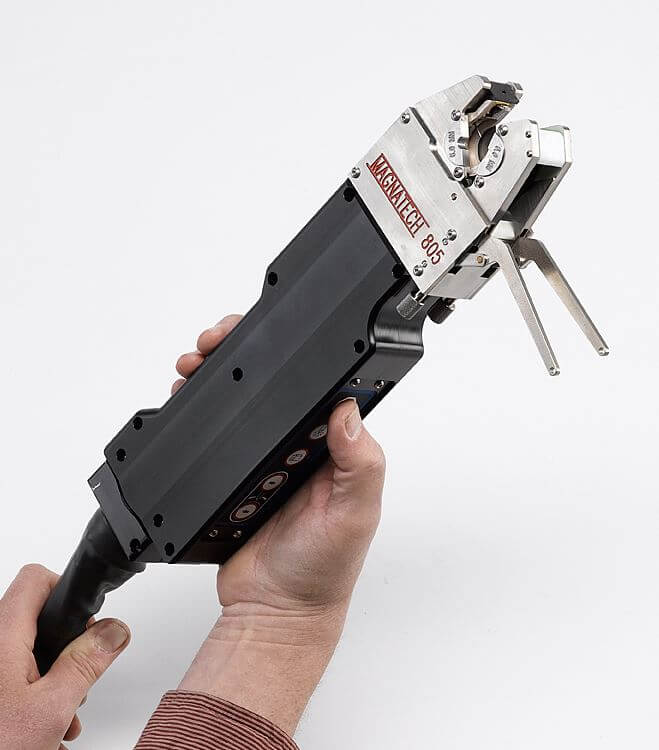

805: .125″ to .625″ (3 mm to 16 mm) OD

810: .125″ to 1″ (3 mm to 25 mm) OD

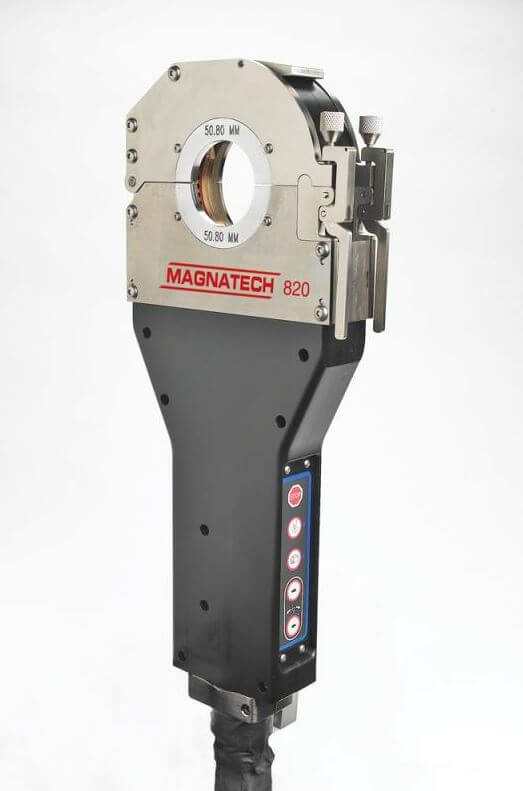

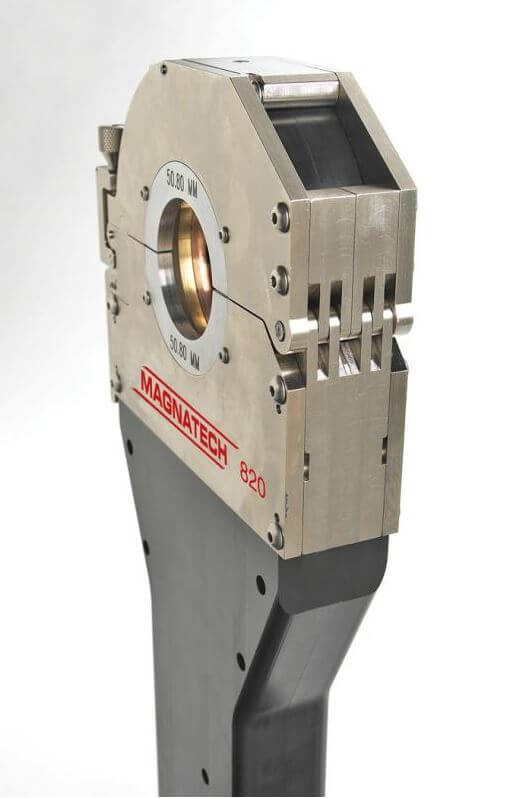

820: .250″ to 2″ (6 mm to 51 mm) OD

830: .375″ to 3″ (9 mm to 75 mm) OD

840: .5″ to 4″ (12 mm to 102 mm) OD

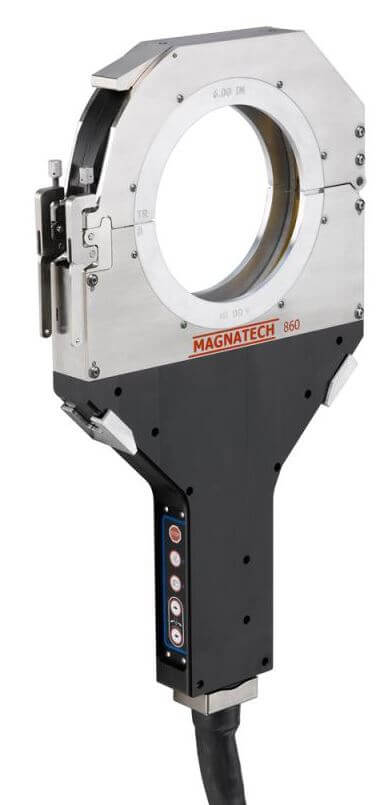

860: 2″ to 6.625″ (50 mm to 168 mm) OD
