ESCO COHOG | Clamshell Pipe Cutting Machine

ESCO Clamshell Pipecutting Tool

ESCO COHOG | Clamshell Pipe Cutting Machine

  • Simple trip mechanism
  • Heavy-duty tool slides in a variety of size options
  • Powerful pneumatic, hydraulic and electric motor options available
  • Sealed construction protects bearing and bearing races from cutting debris

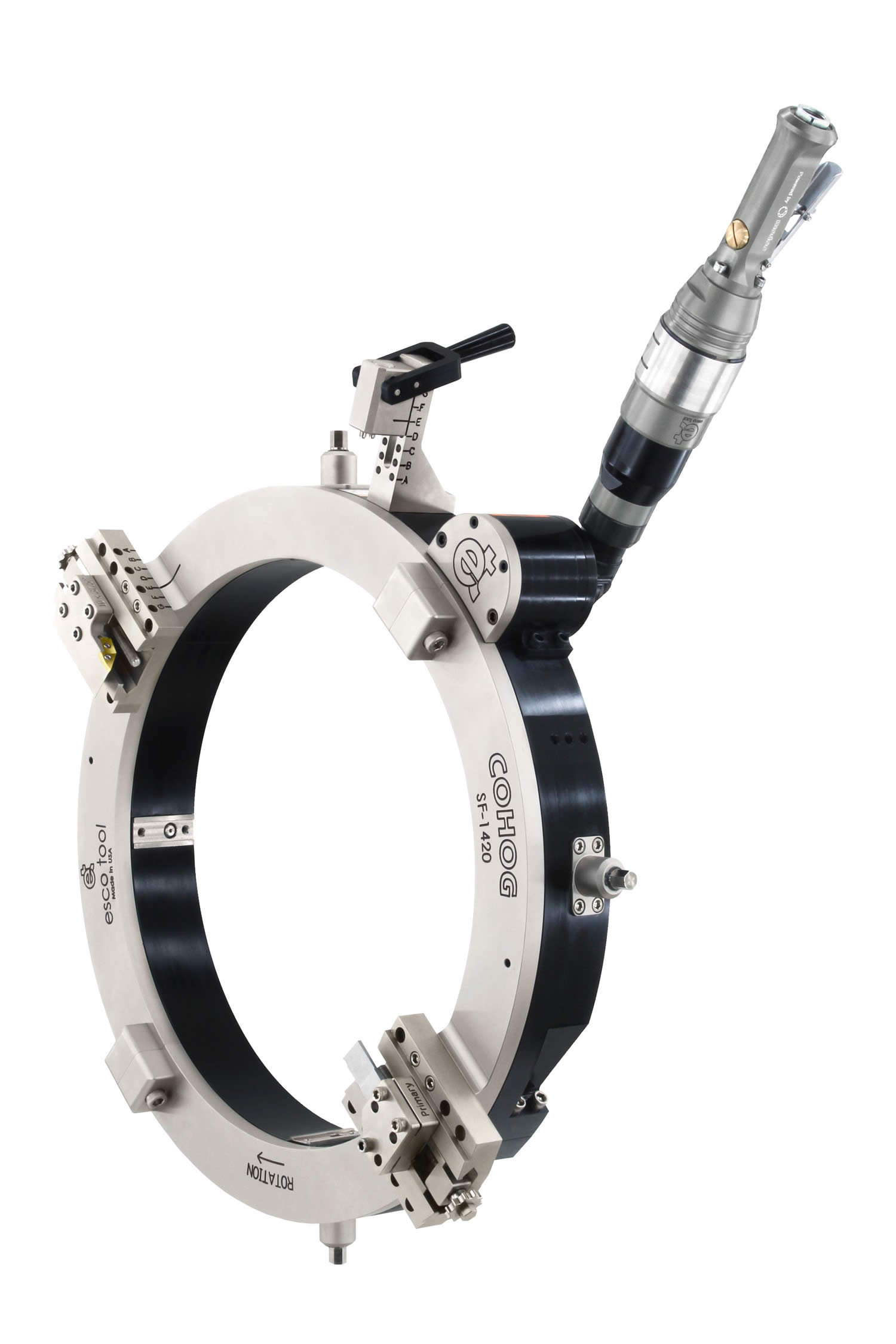

The COHOG is a split frame machine from ESCO Tool. At the core of the COHOG® is its uniquely built frame. The stationary ring is machined out of 7075 aluminum alloy, the strongest aluminum obtainable, and hard coated for maximum strength and durability. A full complement of precision-tuned eccentric bearings fully supports the rotating ring which is machined from a custom steel forging, heat-treated and nickel-plated for long-lasting corrosion and wear resistance. Self-squaring clamp legs quickly align and secure the machine to the pipe making it rigid enough to part and bevel heavy wall pipe, in one operation, without vibration or chatter.

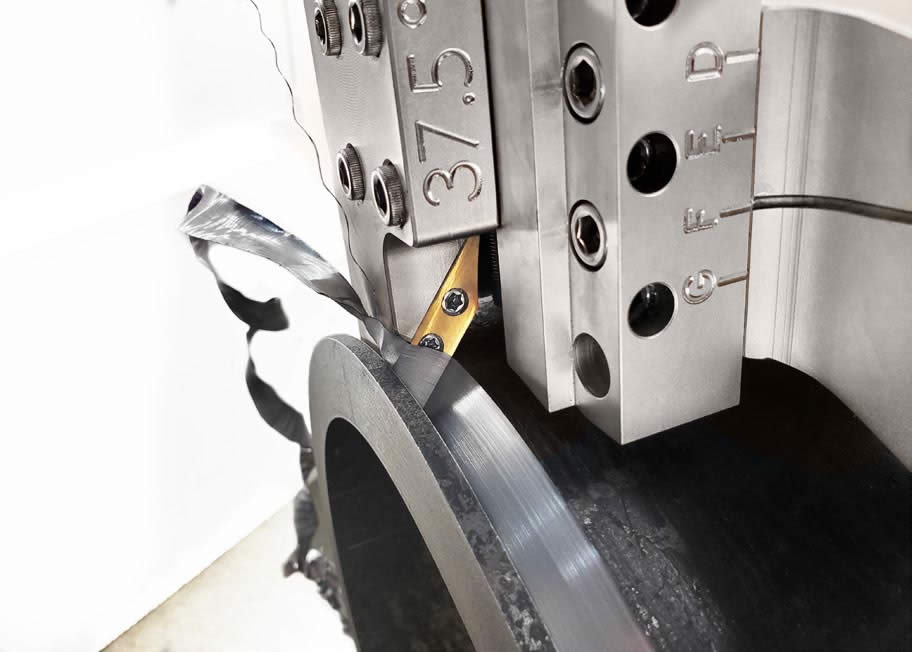

COHOGs feature indexable tool slides and trip mechanisms that use a marked locating system to precisely align and quickly attach without shims or guesswork. A variety of blade modules easily attach to the tool slides and can hold conventional highspeed tool steel blades or cutting inserts. Most cutting inserts have multiple cutting edges, are simple to replace, and provide more cuts per blade at a lower cost.
