Magnatech Pipeliner II Weld Head

  • Size Range: 6 - 60" OD (or larger)
  • Used for multi-pass orbital GMAW/FCAW pipe-to-pipe or pipe-to-fitting
  • Designed for heavy wall, large diameter pipe
  • High deposition rate
  • Oscillation module can be both linear or pendular
  • Made in the USA

Product Description:

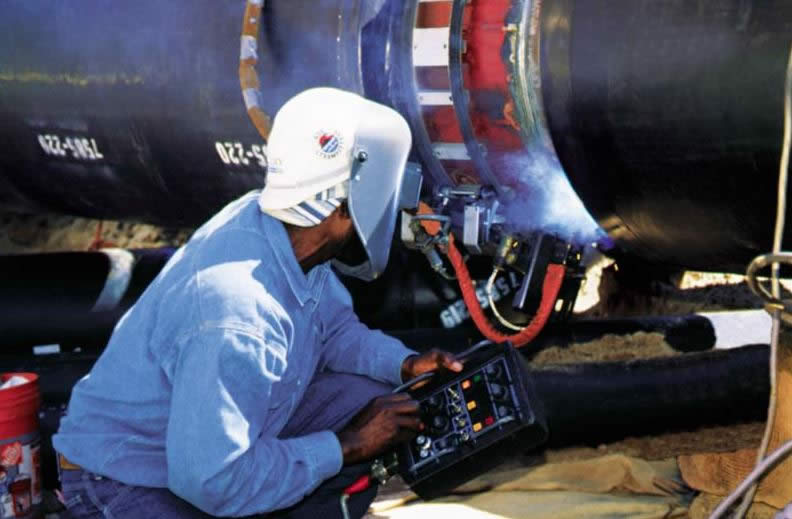

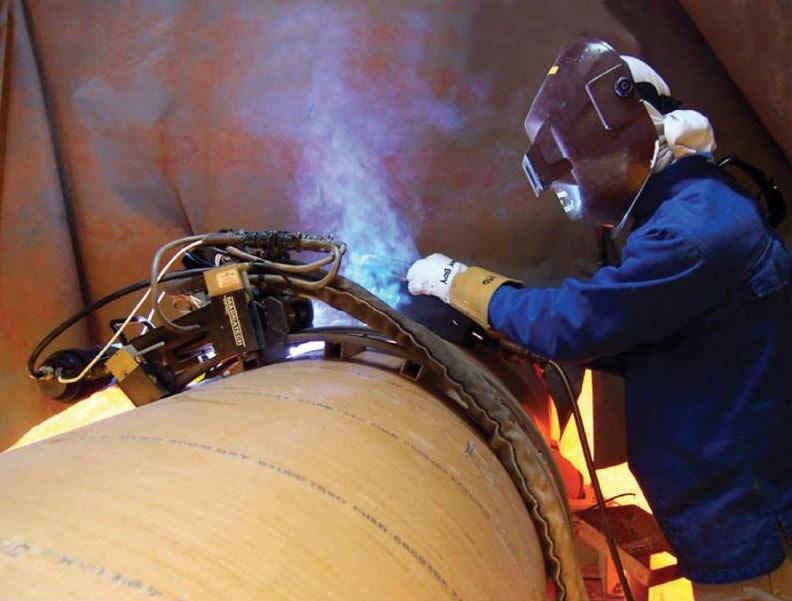

The Pipeliner II is the first practical alternative to manual welding of larger diameter and heavy wall pipes. It produces the same weld quality as mechanized GTAW, but at 5 to 15 times the deposition rate. It is ideal for orbital pipeline welding using GMAW/FCAW processes.

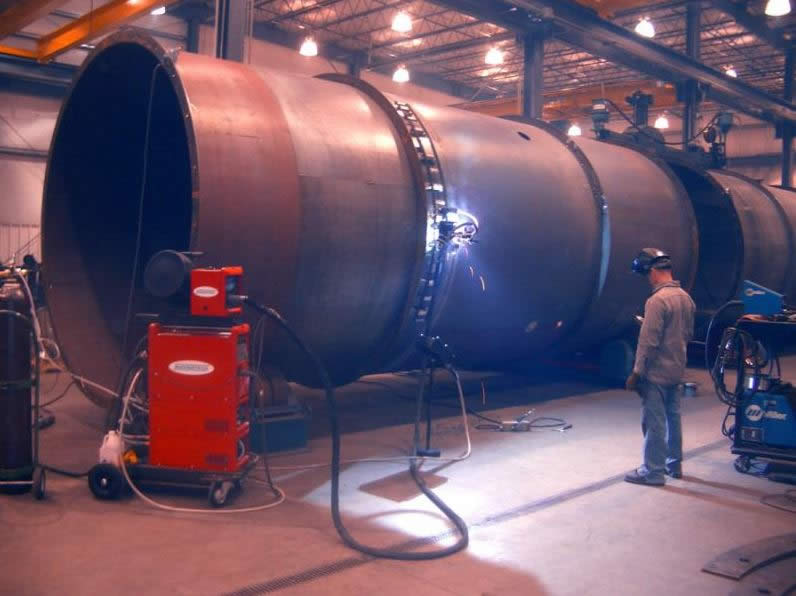

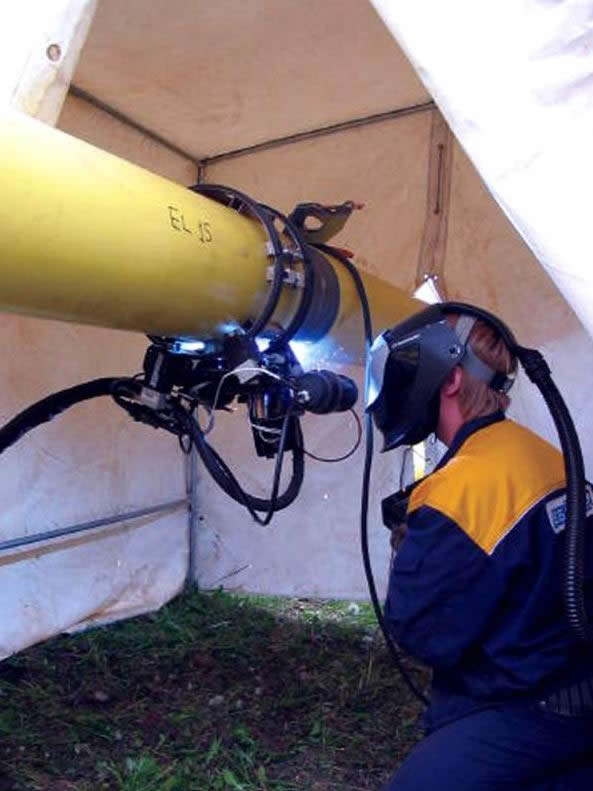

Used with the MPS4000 Power Source, the Pipeliner weld heads produce welds with robotic consistency and precision. The Pipeliner is equally suitable for fab shop or site use and has a proven history of dependability and productivity even in the harshest environments. The system is capable of producing high-quality welds in all gravity positions – meeting ASME IX and API 1104 code requirements.

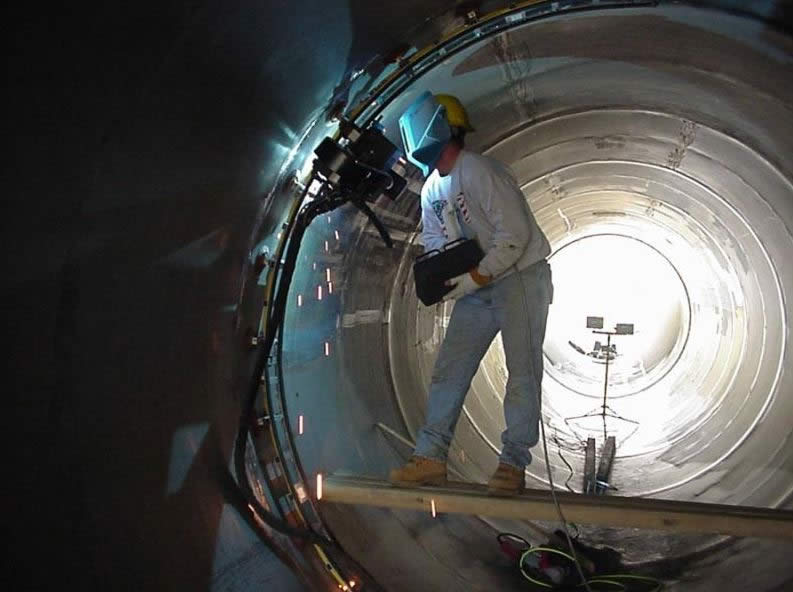

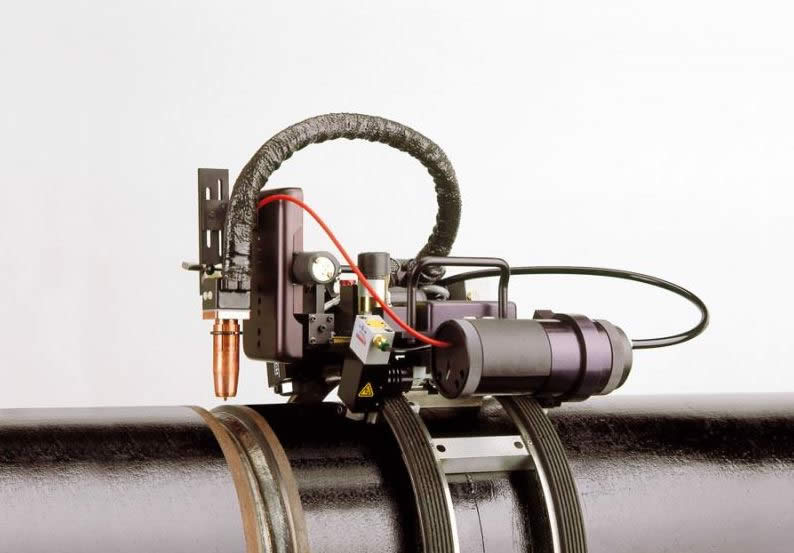

The weld head is mounted on the pipe by means of metal guide rings which are available for all standard pipe sizes. The weld head mounts entirely on one side of the joint, allowing use for pipe-to-fitting needs. Flx-Track allows long linear seam welds on flat or curved surfaces, such as tanks and vessels, as well as ID, OD, and compound curvature welds to be made. The track flexes to conform to different diameters and uses either vacuum or magnet attachment. Mounting the head on an oversize guide ring with adapter feet allows use on CrMo and other alloys requiring preheat.

  • Generates high-quality welds
  • Simple to understand operation
  • Extremely rugged design
  • Push-pull system ensures positive wire feeding

Part # 609AGEB0CP
