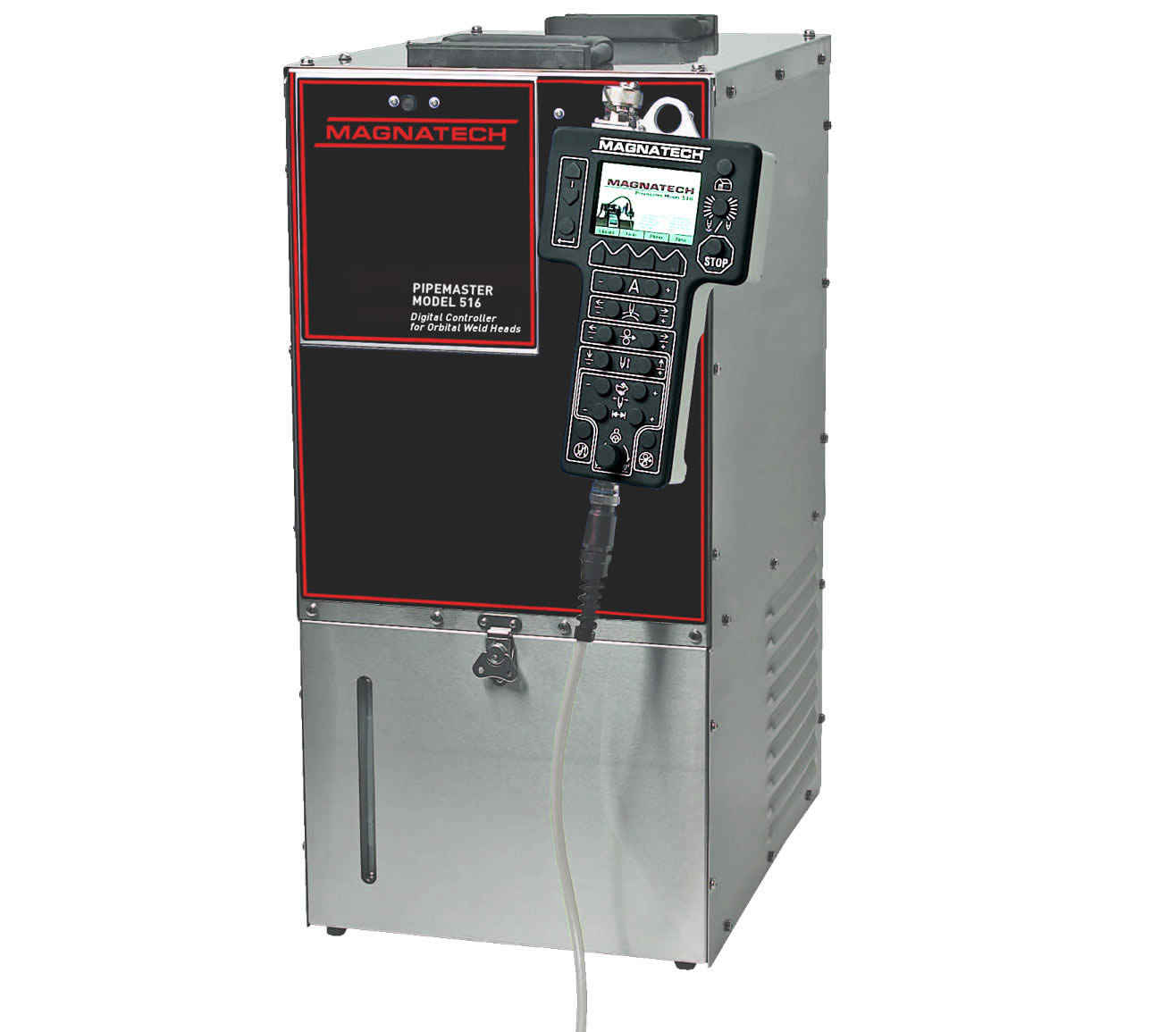

Magnatech 516 Pipemaster Controller

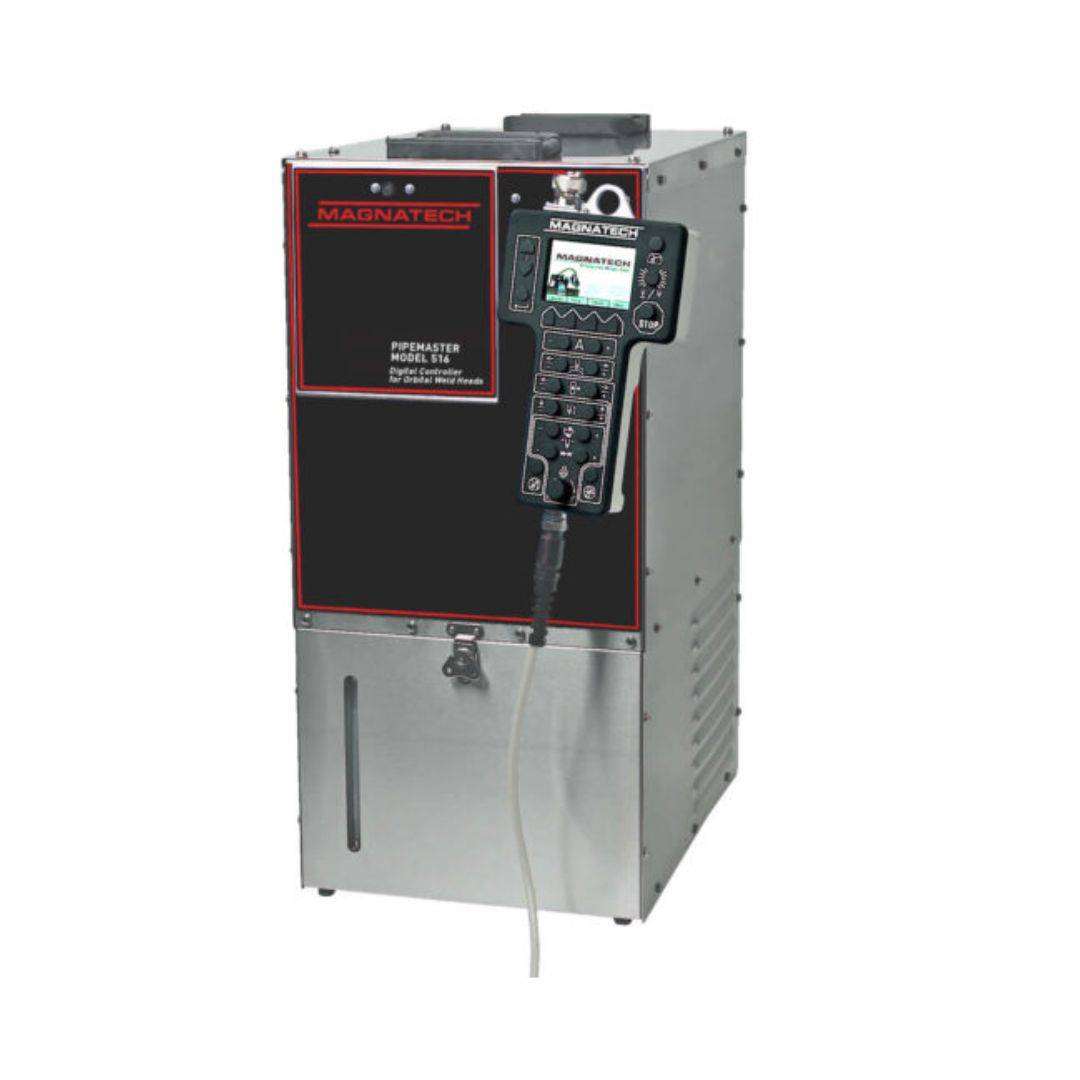

Magnatech 516 Controller

Magnatech 516 Pipemaster Controller

  • Used for multi-pass orbital pipe welding
  • Operates all models of Magnatech weld heads (GTAW process)
  • Controls: current output/pulsing, arc voltage control, oscillation, and weld head wire feed speed
  • Power source dependent
  • Made in the USA

Product Description:

The Magnatech Model 516 Pipemaster is a programmable controller providing the benefits of digital design with unparalleled accuracy, repeatability, and reliability.

The latest generation of Pipemaster controllers is the result of a new direction in power source design. Created to be used with many commercially available weld power sources, the Model 516 allows systems with a wide range of output amperage to meet specific application requirements (200 – 500 amps). All critical electronics are mounted in a completely sealed (IP-65) slide-out module. The Model 516 also operates the T-Head, for larger diameter and heavy pipe welding applications.

  • Stores up to 100 welding programs
  • Full function capability (torch rotation, filler wire feed, electronic arc gap control, electronic oscillation)
  • Simple programming and operation

Part # 516BMJC000
