AMI Model 52 Weld Head

AMI Model 52 Weld Head
Company:

AMI Model 52 Weld Head

  • Compatible with Arc Machine's Model 415 Power Supply
  • On-board wire feed (single or dual wire system)
  • Water-cooled main housing
  • Digital encoder feedback on all functions
  • Cross-seam steering
  • Synchronized torch oscillation, AVC, rotation and wire feed (AVC/OSC 4" standard)

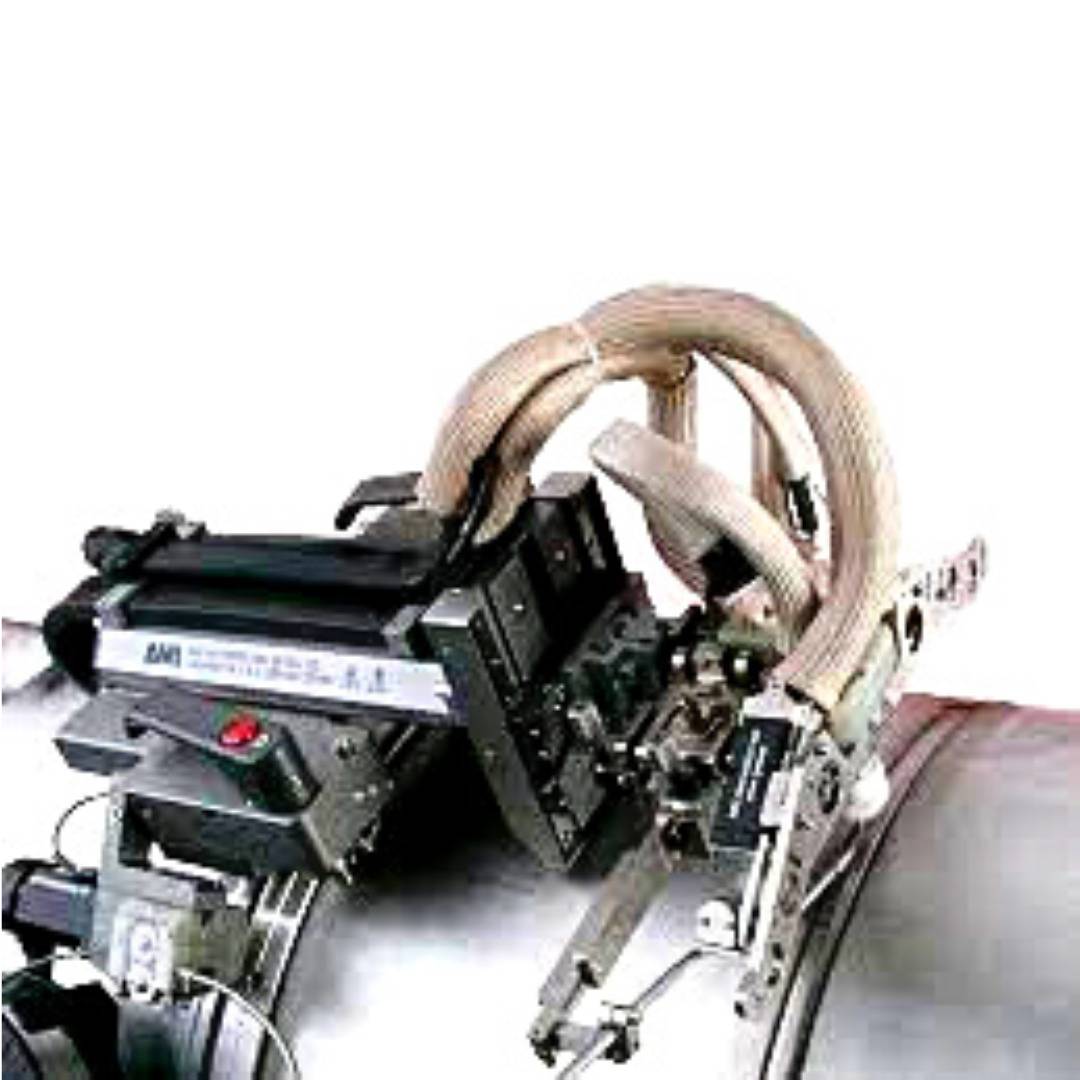

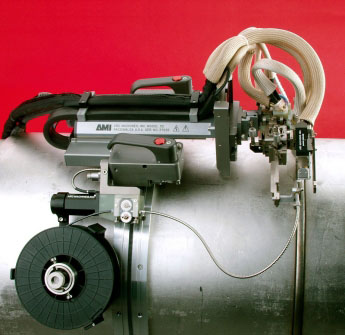

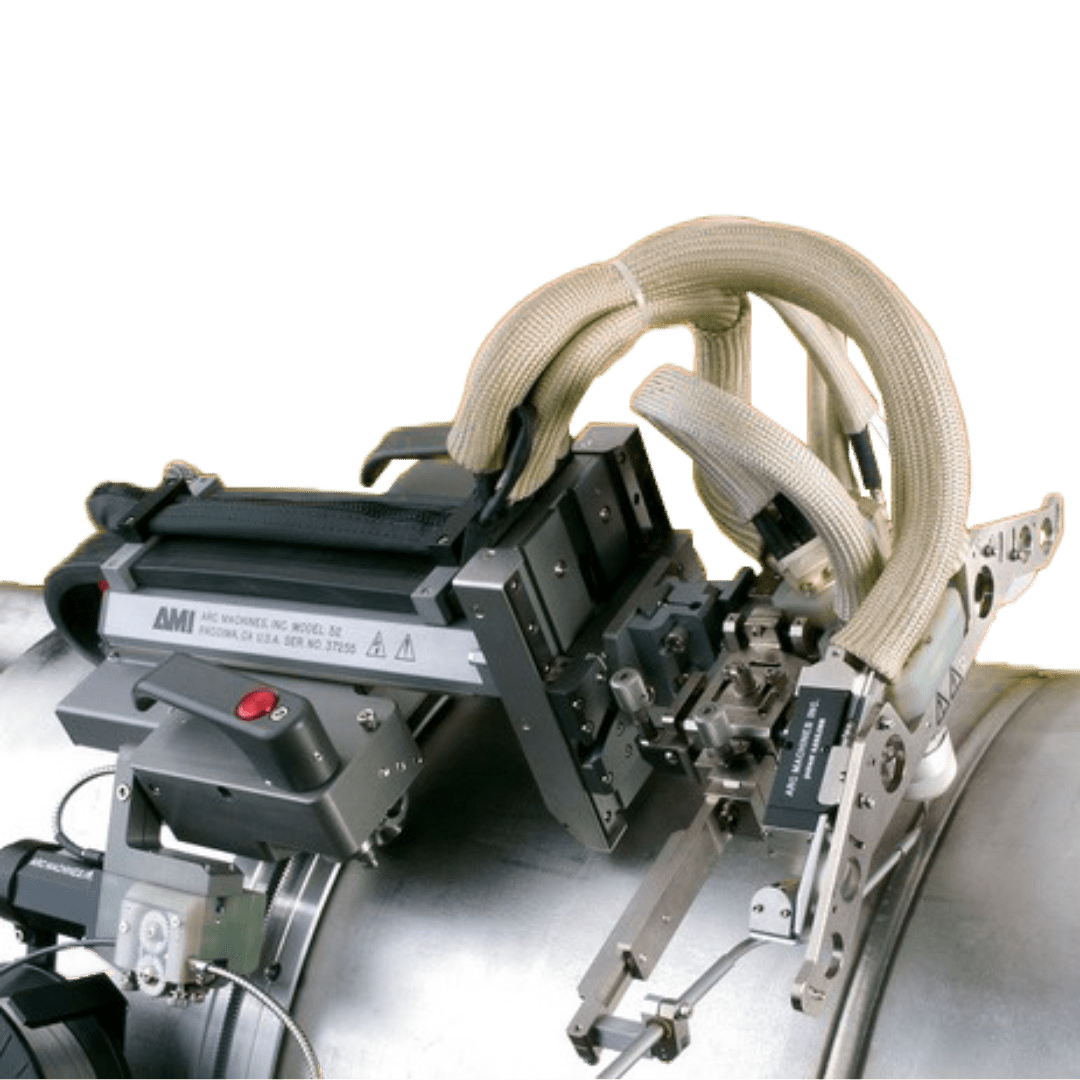

Arc Machine’s Model 52 is intended for all-position, automated welding of pipe, plate or fittings using the Cold or Hot Wire Feed GTAW (TIG) process. It is a rugged, precision tool with minimal radial clearance for welding of all pipe sizes from 8″ pipe up to an unlimited size, including flat plate.

The Model 52 is intended for field or heavy duty shop use in the nuclear, shipbuilding, chemical, petrochemical and construction industries where weld quality requirements are stringent and the use of the GTAW process is beneficial. The Model 52 is a “full function” welding head, meaning that it provides all functions necessary for true automated welding including Arc Rotation, Arc Voltage Control (AVC) for arc gap control, Wire Feed (weld filler) and Torch Oscillation (weave). The Model 52 also features range expandability of most of these functions as well as providing other standard features that are options on most other weld heads.

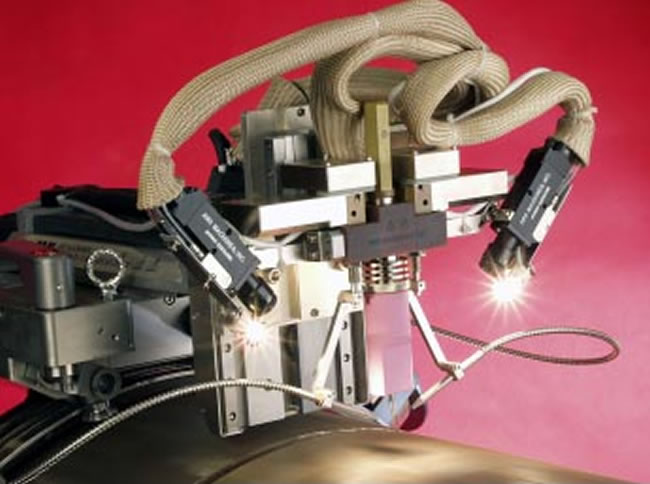

The Model 52 weld head provides a durable, extremely versatile, heavy-duty platform for using a variety of torch options. These torch options range from a “standard” head using a single-entry torch and a single wire feeder to more complex torches for Narrow Groove Welding, Remote Welding with Vision and Hot Wire Welding. It can be ordered or retrofitted with numerous application-specific accessories customizing the head for a user’s needs.

Part # 13520100-01
