W-50 Tensile Weld Tester

tensile tester W50 from Watts Mueller

W-50 Tensile Weld Tester

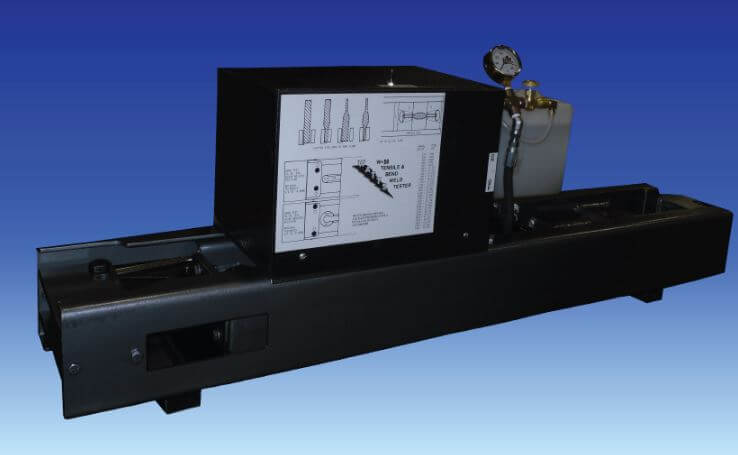

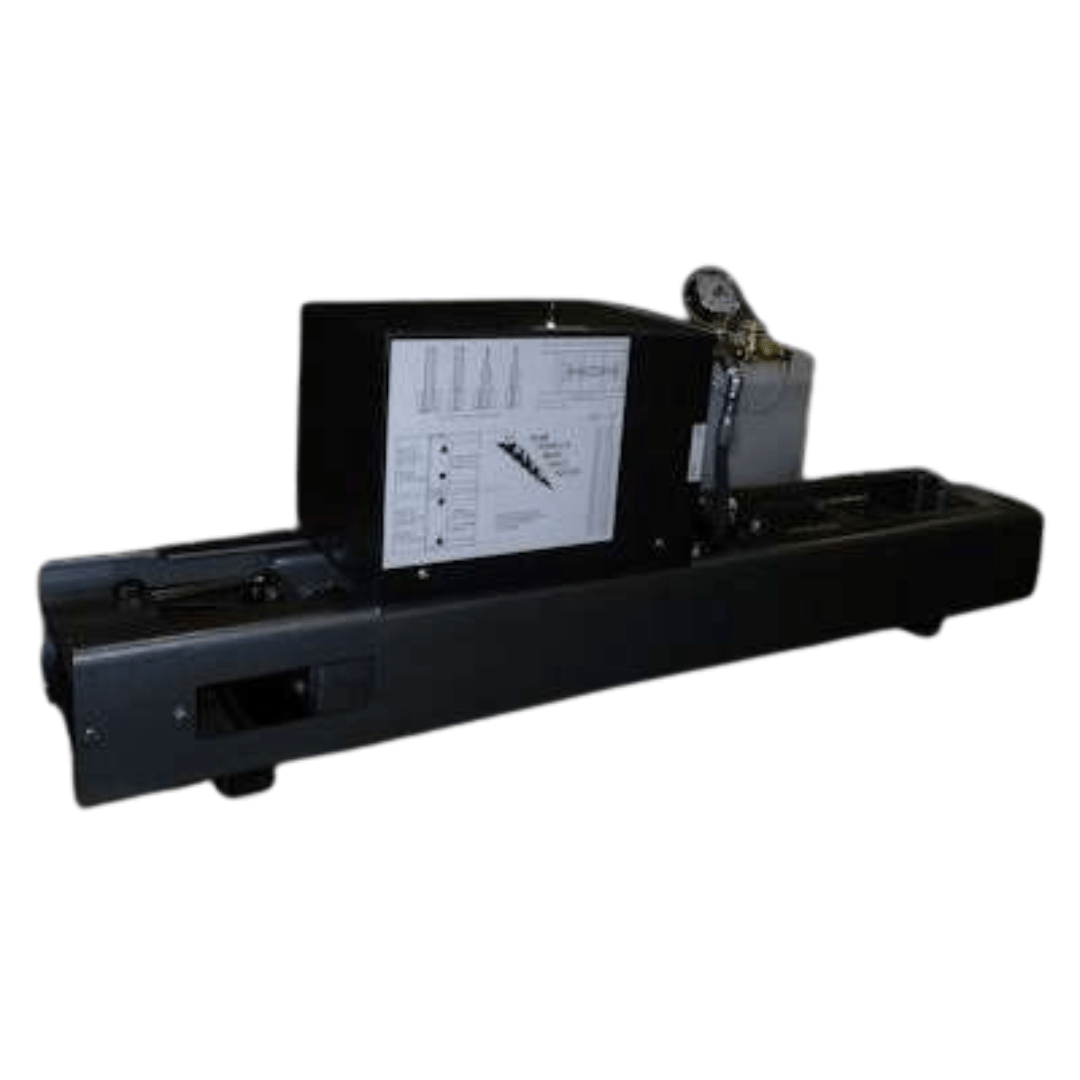

The W-50 Weld Tester is a piece of destructive weld testing equipment that incorporates compression, tensile, and weld bend testing in one complete unit. This is an invaluable asset to any training facility or commercial company that requires weld qualification.

The Watts Process Machinery W-50 can do all the key destructive tests as specified by AWS, ASME, and API. The W-50 requires very little space since the unit sits horizontally. This machine is designed so the entire test procedure can be handled by one operator quickly and easily.

Destructive Weld Testing Capabilities

FULL PIPE TENSILE TEST – Up to 1.5″ Std. Pipe. Compress (flatten) pipe coupon ends to be held by the binding jaws. Tensile (pull) up to 50,000 lbs. between the two jaw sets. Maximum coupon length 12 inches.

NICK-BREAK TENSILE TEST – Either pipe or flat bar can be forced to break by ‘nicking’ the weldment at the intended break line. This is a visual evaluation test.

GUIDED ROLLER BEND TEST – All bend tests for welding are possible (Root, Face, Side Bends). Two bend test diameters are supplied. The 1.5″ diameter plunger tests coupons up to .375″ x 2″ x approx. 8″ with a material yield strength of 50K PSI or less. The 3.5″ diameter collet over the plunger tests coupons up to .50″ x 2″ x approx. 8″ with a material yield strength of 80K PSI or less.

The W-50 Weld Tester is a piece of destructive weld testing equipment that incorporates compression, tensile, and weld bend testing in one complete unit. This is an invaluable asset to any training facility or commercial company that requires weld qualification.

The Watts Process Machinery W-50 can do all the key destructive tests as specified by AWS, ASME, and API. The W-50 requires very little space since the unit sits horizontally. This machine is designed so the entire test procedure can be handled by one operator quickly and easily.

Destructive Weld Testing Capabilities

FULL PIPE TENSILE TEST – Up to 1.5″ Std. Pipe. Compress (flatten) pipe coupon ends to be held by the binding jaws. Tensile (pull) up to 50,000 lbs. between the two jaw sets. Maximum coupon length 12 inches.

NICK-BREAK TENSILE TEST – Either pipe or flat bar can be forced to break by ‘nicking’ the weldment at the intended break line. This is a visual evaluation test.

GUIDED ROLLER BEND TEST – All bend tests for welding are possible (Root, Face, Side Bends). Two bend test diameters are supplied. The 1.5″ diameter plunger tests coupons up to .375″ x 2″ x approx. 8″ with a material yield strength of 50K PSI or less. The 3.5″ diameter collet over the plunger tests coupons up to .50″ x 2″ x approx. 8″ with a material yield strength of 80K PSI or less.
